EA500-DISPLAYHOUSING3

Jumpstart product design using ExDirect's EA500-DISPLAYHOUSING3 for ExDirect EN500 and EX500 Hawk or EX550 Dual Hawk Enclosures. Benefit from the available CAD files for the PCBs that fit perfectly inside the Display Housing. These simplify PCB design as well as save engineering time and effort. With ExDirect Display Housings PCBs are not left exposed and everything fits just right, resulting in a true finished product.


The EA500-DisplayHousing3 holds a single PCB. It is designed to provide secure and seamless mounting to an EN500, EX500, or EX550 enclosure's built-in rails. The back piece comes with (4) connector openings to provide a total of (15) terminal connections. The front piece includes (1) opening for jumpers or other connectors.

Data Sheet CAD Drawings Ordering Info

Key Features

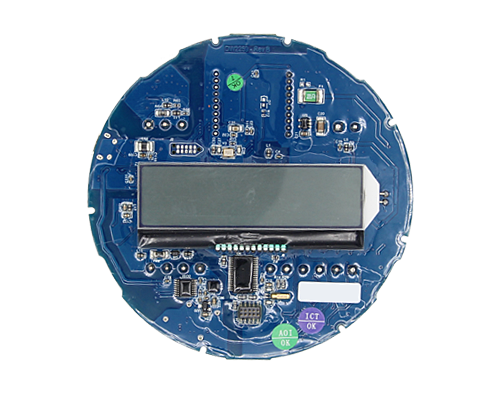

display_housings3_pre-engineered_design

Pre-Engineered Design

Save engineering time and effort by using an already existing PCB housing that will make your product look great! Simplify PCB layout by starting with files that fit the housing.

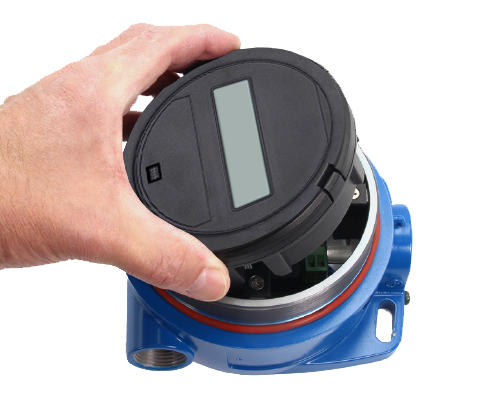

display_housings3_easy_installation

Easy Installation

The EA500 display housings encase the PCBs completely. It fits perfectly in the enclosure and requires no tools for mounting.

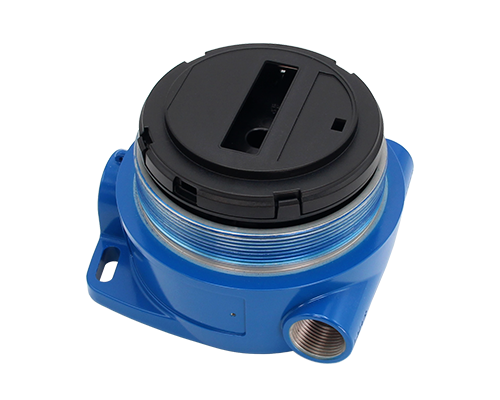

display_housings3_optimal_display

Optimal Display

Designed to sit close to the glass cover to maximize the display’s viewing angle.

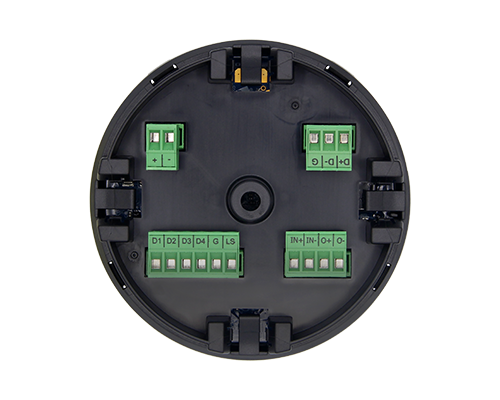

display_housings3_multiple_openings

Multiple Openings

The back piece comes with (4) connector openings to provide a total of (15) terminal connections. The front piece includes (1) opening for jumpers or other connectors.

Specifications

Product Type
Plastic Display Housing for EN500, EX500, & EX550 Enclosures with 15 Terminal Positions, Plastic Display Housing (Box of 220) for EN500, EX500, & EX550 Enclosures with 15 Terminal Positions
Material
Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings
4
Number of Terminals
15
Terminal Size (mm)
3.81
Ribbon Cable Header Openings
None
2-Pin Connector Opening
None
Jumper Openings
1
Switch Openings
None
PCB Capacity
(1) display
Color
Black
Antenna Connections
1

Dimensions

EA500-DisplayHousing3_Front_Dimensions
EA500-DisplayHousing3_Front_Side_Dimensions
EA500-DisplayHousing3_Front_Interior_Dimensions
EA500-DisplayHousing3_Front_Top_Dimensions
EA500-DisplayHousing3_Back_Dimensions
EA500-DisplayHousing3_Back_Side_Dimensions
EA500-DisplayHousing3_Back_Interior_Dimensions
EA500-DisplayHousing3_Back_Top_Dimensions
EA500-DisplayHousing3_PCB

CAD Drawings

To download 2D CAD drawings please visit our CAD Drawings page. 3D CAD Drawings are available upon request. Please visit our CAD Drawings page for request form and instructions.

CAD Drawings

Ordering Information

Show Filters
Reset filters
SKU: EA500-DISPLAYHOUSING3 Product Type: Plastic Display Housing for EN500, EX500, & EX550 Enclosures with 15 Terminal Positions
Material: Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings: 4
Number of Terminals: 15
Terminal Size (mm): 3.81
Ribbon Cable Header Openings: None
2-Pin Connector Opening: None
Jumper Openings: 1
Switch Openings: None
PCB Capacity: (1) display
Color: Black
Antenna Connections: 1
 Stock: 0 Lead Time: Currently 0 in stock for immediate shipment. Price: $14.70 Substantial quantity discounts available; contact factory for details.
SKU: EA500-DISPLAYHOUSING3-220 Product Type: Plastic Display Housing (Box of 220) for EN500, EX500, & EX550 Enclosures with 15 Terminal Positions
Material: Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings: 4
Number of Terminals: 15
Terminal Size (mm): 3.81
Ribbon Cable Header Openings: None
2-Pin Connector Opening: None
Jumper Openings: 1
Switch Openings: None
PCB Capacity: (1) display
Color: Black
Antenna Connections: 1
 Stock: 0 Lead Time: Currently 0 in stock for immediate shipment. Price:

Need Additional Information?

For any questions or quantity pricing please contact us.
