EA500-DISPLAYHOUSING1

Jumpstart product design using ExDirect's EA500-DISPLAYHOUSING1 for ExDirect EN500 and EX500 Hawk or EX550 Dual Hawk Enclosures. Benefit from the available CAD files for the PCBs that fit perfectly inside each Display Housing. These simplify PCB design as well as save engineering time and effort. With ExDirect Display Housings PCBs are not left exposed and everything fits just right, resulting in a true finished product.

The EA500-DisplayHousing1 holds a display PCB and an additional PCB. It is designed to provide secure and seamless mounting to an EN500, EX500, or EX550 enclosure's built-in rails. The back piece comes with (4) connector openings to provide a total of (9) terminal connections, as well as openings for (1) 2-pin connector and (1) 14-pin ribbon cable header. The front piece includes (1) opening for jumpers or other connectors.

Data Sheet CAD Drawings Ordering Info

Key Features

Pre-Engineered Design

Save engineering time and effort by using an already existing PCB housing that will make your product look great! Simplify PCB layout by starting with files that fit the housing.

Easy Installation

The EA500 display housings encase the PCBs completely. It fits perfectly in the enclosure and requires no tools for mounting.

Optimal Display

Designed to sit close to the glass cover to maximize the display’s viewing angle.

Multiple Openings

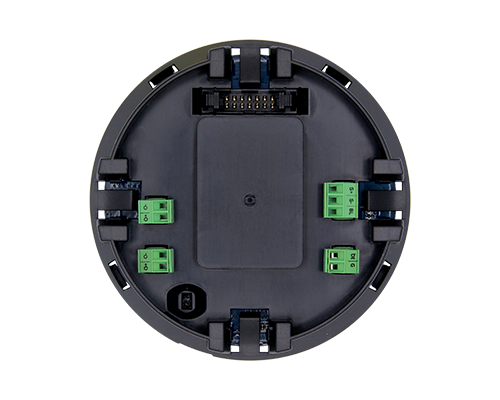

The back piece comes with (4) connector openings to provide a total of (9) terminal connections, as well as openings for (1) 2-pin connector and (1) 14-pin ribbon cable header. The front piece includes (1) opening for jumpers or other connectors.

Specifications

Product Type

Plastic Display Housing for EN500, EX500, & EX550 Enclosures with 9 Terminal Positions, Plastic Display Housing (Box of 220) for EN500, EX500, & EX550 Enclosures with 9 Terminal Positions

Material

Virgin PPE+PS Blend Sabic Noryl N190X

Terminal Connector Openings

4

Number of Terminals

9

Terminal Size (mm)

3.81

Ribbon Cable Header Openings

1 (14-Pin)

2-Pin Connector Opening

1

Jumper Openings

1

Switch Openings

None

PCB Capacity

(1) display + (1) additional

Color

Black

Antenna Connections

None

Dimensions

EA500-DisplayHousing1-2_Front_Interior_Dimensions

EA500-DisplayHousing1-2_Front_Top_Dimensions

EA500-DisplayHousing1-2_Back_Side_Dimensions

EA500-DisplayHousing1-2_Back_Top_Dimensions

CAD Drawings

To download 2D CAD drawings please visit our CAD Drawings page. 3D CAD Drawings are available upon request. Please visit our CAD Drawings page for request form and instructions.
