EA500-BASEHOUSING3

Base housings are designed to accommodate components such as batteries, relays, etc. on the base of EN500, EX500, and EX550 enclosures. They screw directly onto the drilled and tapped internal mounting holes located on the base of the enclosure. Benefit from adding more space to house components as well as giving products a polished and finished look.


The EA500-BaseHousing3 comes with (3) connector openings to provide a total of (7) terminal connections.

Data Sheet CAD Drawings Ordering Info

Key Features

base_housings3_easy_installation

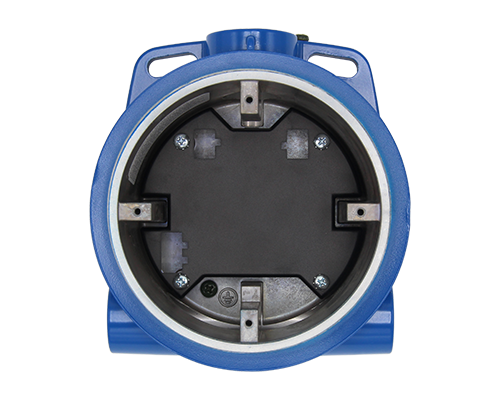

Easy Installation

Designed to screw directly onto the drilled and tapped internal mounting holes on the base of the enclosure.

base_housings3_additional_space

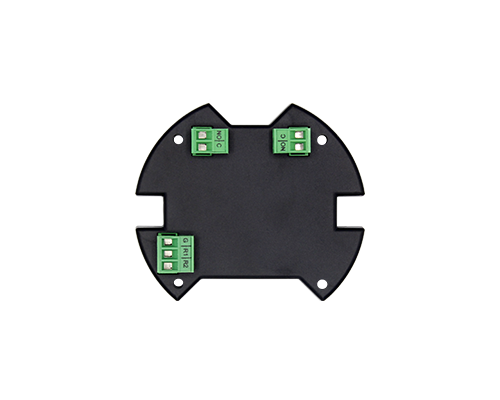

Additional Space

Designed to accommodate additional components such as relays, cables, etc.

base_housings_EA500-BaseHousing3

Various Openings

Provides (3) connector openings for up to (7) terminal connections.

Specifications

Product Type
Plastic Base Housing for EN500, EX500, & EX550 Enclosures with 7 Terminal Positions, Plastic Base Housing (Box of 220) for EN500, EX500, & EX550 Enclosures with 7 Terminal Positions
Material
Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings
3
Number of Terminals
7
Terminal Size (mm)
3.81 (3) and 5.0 (4)
Ribbon Cable Header Openings
None
2-Pin Connector Opening
None
Color
Black
Battery Slot
None

Dimensions

EA500-BaseHousing3_Front
EA500-BaseHousing3_Side
EA500-BaseHousing3_Back
EA500-BaseHousing3_Top
EA500-BaseHousings_PCB

CAD Drawings

To download 2D CAD drawings please visit our CAD Drawings page. 3D CAD Drawings are available upon request. Please visit our CAD Drawings page for request form and instructions.

CAD Drawings

Ordering Information

Show Filters
Reset filters
SKU: EA500-BASEHOUSING3 Product Type: Plastic Base Housing for EN500, EX500, & EX550 Enclosures with 7 Terminal Positions
Material: Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings: 3
Number of Terminals: 7
Terminal Size (mm): 3.81 (3) and 5.0 (4)
Ribbon Cable Header Openings: None
2-Pin Connector Opening: None
Color: Black
Battery Slot: None
 Stock: 0 Lead Time: Currently 0 in stock for immediate shipment. Price: $5.35 Substantial quantity discounts available; contact factory for details.
SKU: EA500-BASEHOUSING3-220 Product Type: Plastic Base Housing (Box of 220) for EN500, EX500, & EX550 Enclosures with 7 Terminal Positions
Material: Virgin PPE+PS Blend Sabic Noryl N190X
Terminal Connector Openings: 3
Number of Terminals: 7
Terminal Size (mm): 3.81 (3) and 5.0 (4)
Ribbon Cable Header Openings: None
2-Pin Connector Opening: None
Color: Black
Battery Slot: None
 Stock: 0 Lead Time: Currently 0 in stock for immediate shipment. Price:
