EA200-DISPLAYHOUSING
EA200-DISPLAYHOUSING
Jumpstart product design using ExDirect's EA200-DISPLAYHOUSING for ExDirect EX200 Cardinal Enclosures. Benefit from the available CAD files for the PCBs that fit perfectly inside the EA200-DISPLAYHOUSING. These simplify PCB design as well as save engineering time and effort. With ExDirect Display Housings PCBs are not left exposed and everything fits just right, resulting in a true finished product.
The EA200-DISPLAYHOUSING includes two screws to assemble the two plastic pieces together, and mounts to an EX200 enclosure using standoffs (not included).
Key Features

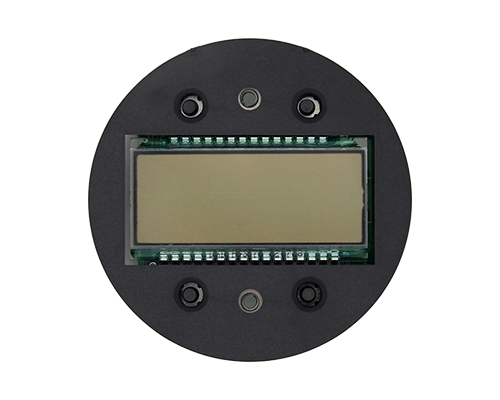

Pre-Engineered Design
Save engineering time and effort by using an already existing PCB housing that will make your product look great! Simplify PCB layout by starting with files that fit the housing.

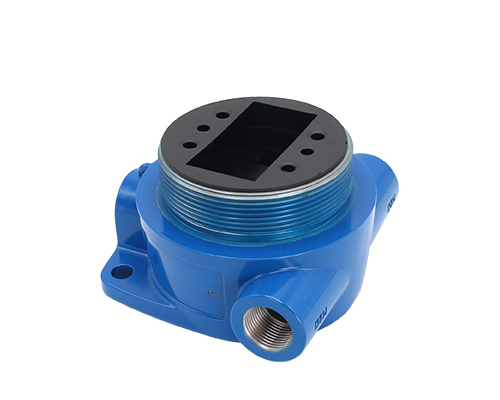

Easy Installation
The EA200 display housing mounts securely to an EX200 enclosure using standoffs threaded into the drilled and tapped holes on the base of the enclosure.

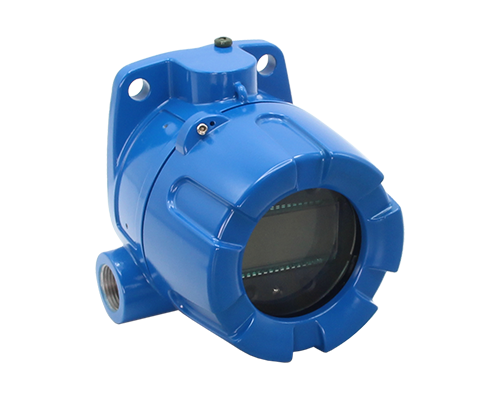

Optimal Display
Designed to sit close to the glass cover to maximize the display’s viewing angle.

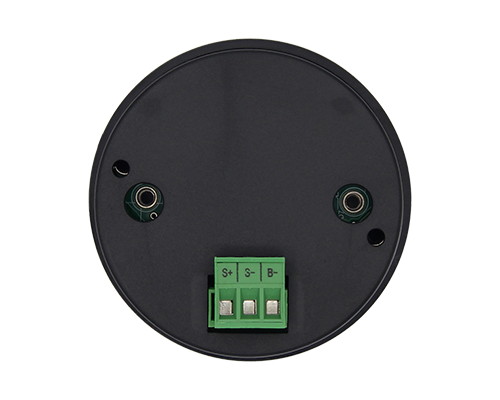

Multiple Openings
The back piece comes with (1) connector opening to provide a total of (3) terminal connections. The front of the display housing includes (4) switch openings.
Specifications
Dimensions
CAD Drawings
To download 2D CAD drawings please visit our CAD Drawings page. 3D CAD Drawings are available upon request. Please visit our CAD Drawings page for request form and instructions.
CAD DrawingsOrdering Information
Show Filters Hide Filters| SKU | Description | Stock | Lead Time | Price | QTY |
|---|---|---|---|---|---|
| SKU: EA200-DISPLAYHOUSING |
Product Type:
Plastic Display Housing for EX200 Enclosure Material: Virgin PPE+PS Blend Sabic Noryl N190X Terminal Connector Openings: 1 Number of Terminals: 3 Terminal Size (mm): 5.00 Switch Openings: 4 PCB Capacity: (1) display Color: Black Screw Type: (2) Phillips Pan Head #4x3/4 Trilobular (plastic thread cutting) screws included. |
Stock: 0 | Lead Time: Currently 0 in stock for immediate shipment. | Price: $7.80 Substantial quantity discounts available; contact factory for details. |
|
| SKU: EA200-DISPLAYHOUSING-340 |
Product Type:
Plastic Display Housing (Box of 340) for EX200 Enclosure Material: Virgin PPE+PS Blend Sabic Noryl N190X Terminal Connector Openings: 1 Number of Terminals: 3 Terminal Size (mm): 5.00 Switch Openings: 4 PCB Capacity: (1) display Color: Black Screw Type: (2) Phillips Pan Head #4x3/4 Trilobular (plastic thread cutting) screws included. |
Stock: 0 | Lead Time: Currently 0 in stock for immediate shipment. | Price: |
|
