Modern Explosion-Proof Enclosures for Today’s Electronic OEM

View Enclosures

Bring New Life to Existing Products and Make New Products Really Stand Out

The first thing a customer notices about a product is what it looks like. That’s why it should be housed in an explosion-proof instrument housing that really makes it shine!

EX200-AL-W-05-BL_main

Cardinal

The Cardinal is ExDirect’s smallest, most economical explosion-proof instrument enclosure. It is available in aluminum and stainless steel and stocked with solid and window covers in different conduit configurations.

View Cardinal
EX500-AL-W-07-BL_main

Hawk

The Hawk is ExDirect’s mid-sized explosion-proof instrument enclosure. It is available in plastic, aluminum, and stainless steel and stocked with solid and window covers in different conduit configurations.

View Hawk
EX550-AL-W-54-BL_main

Dual Hawk

The Dual Hawk is ExDirect's dual-compartment, mid-sized explosion-proof instrument enclosure. It is available in aluminum with up to four conduit connections, one of which can be 1" for a process connection and another at the top can be for an antenna.

View Dual Hawk
EX700-AL-W-07-BL_main

Condor

The Condor is ExDirect’s largest explosion-proof instrument enclosure with the most spacious interior. It is available in aluminum and stainless steel and stocked with solid and window covers with four 3/4" conduit connections.

View Condor

Why Choose ExDirect Enclosures?

Because you want your product to stand out from the crowd! Your customers will appreciate the modern, sleek, and practical design elements of ExDirect’s enclosures. In the case of our most popular enclosure, the Hawk, they will also appreciate being able to purchase your product in explosion-proof enclosures made of aluminum or stainless steel, as well as a general-purpose plastic version. And just as important, you’ll be buying direct from the manufacturer, thus eliminating costly middlemen.

icon-window icon

Window

Optimized for maximum viewing angle and diameter for easy viewing of any display.

icon-material icon

Material

Die-cast aluminum, stainless steel, or plastic with and without windows.

icon-conduits icon

Conduits

Available in a wide range of number of conduits and sizes.

icon-mounting icon

Field Mounting

Built-in mounting flanges are standard on all instrument enclosures.

icon-approvals icon

Approvals

Worldwide UL, CSA, ATEX, and IECEx approvals for use in hazardous area.

icon-pcb icon

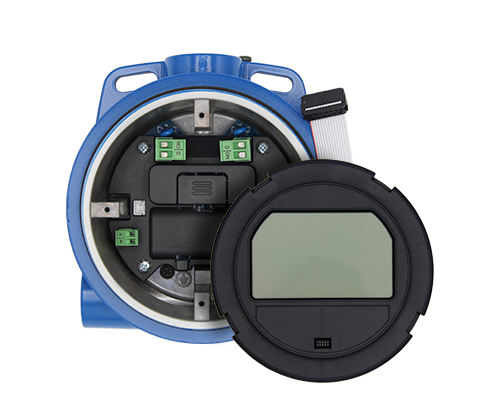

PCB Mounting

Drilled and tapped internal mounting holes and cast rails for easy mounting of a PCB or other components.

icon-buy-direct icon

Buy Direct

Eliminate the middleman and buy direct from the manufacturer.

icon-quality-assurance icon

Quality Control

Window assembly and final quality assurance is done in USA.

icon-quick-ship icon

Quick Lead Times

A large stock of enclosures is maintained in our facility in Hopkinton, MA for quick shipping.

ExDirect Enclosures Key Features

ExDirect enclosures are available in aluminum and stainless steel and come in three sizes. They feature a screw down cover with either a window or a solid front. The medium size (Hawk) enclosure is also available in a dual-compartment aluminum configuration and as a general-purpose plastic enclosure.

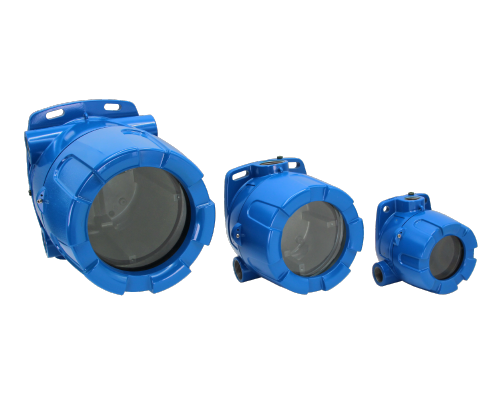

ex_home_key_features_three_enclosure_sizes

3 Enclosure Sizes

ExDirect instrument enclosures are available in three sizes.

ex_home_key_features_glass_or_solid

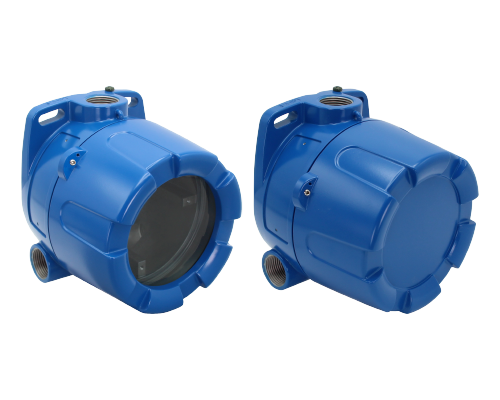

Glass or Solid Front

They feature a screw down cover with either a window optimized for wide viewing angle or a solid front.

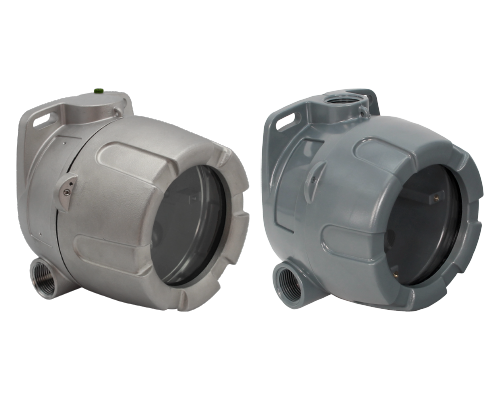

ex_home_key_features_stainless_steel_or_plastic

Stainless Steel & Plastic

Enclosures are available in type 316 stainless steel. Hawk is also available in polycarbonate plastic with UV stabilizer.

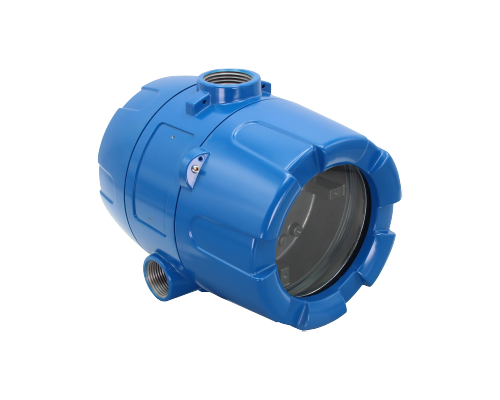

ex_home_key_features_dual_compartment

Dual-Compartment Hawk

A dual-compartment Hawk enclosure is available in aluminum and features a separate compartment for making field wiring connections.

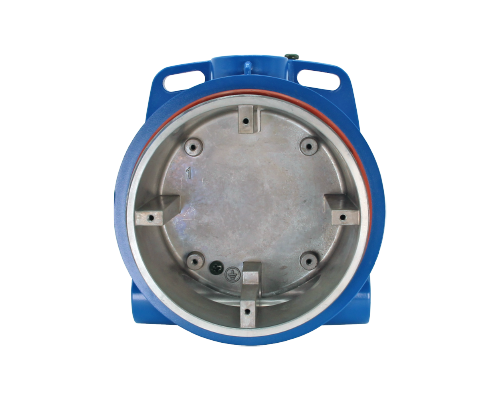

ex_home_key_features_pcb_mounting

PCB Mounting

Four drilled and tapped internal mounting holes and four cast-in rails are available inside the enclosure for easy mounting of a PCB or other components.

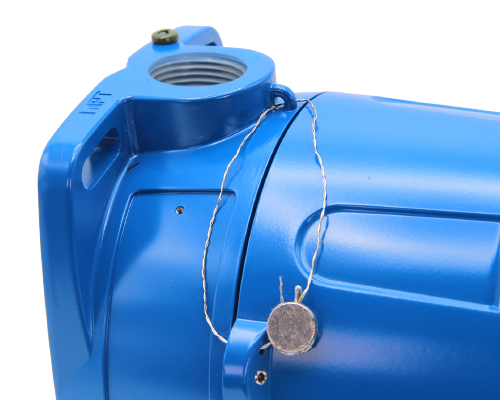

ex_home_key_features_tamper_seal

Tamper Seal

Tamper-proofing is achieved by inserting a wire through the cast-in loop on the base of the enclosure and a hole in the lid of the enclosure and securing this wire with a lead seal.

ex_home_key_features_pipe_or_wall_mounting

Pipe/Wall Mounting

The built-in mounting flange(s) allow easy mounting to walls or pipes. A slotted back makes it easy to center the enclosure on a pipe.

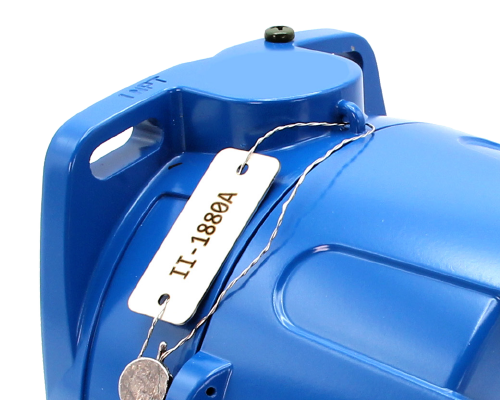

ex_home_key_features_cast_in_loop

Cast-in Loop

Attach a stainless steel tag to the enclosure through the cast-in loop located on the base of the enclosure.

Need Additional Information?

For any questions or quantity pricing please contact us.
