EN500 Evaluation Unit

The EN500-EVAL evaluation unit provides engineers with a clear view of how ExDirect enclosures and corresponding accessories can streamline design efforts and lower overall costs.


This evaluation kit features our mid-sized Hawk EN500-PL-W instrument housing in polycarbonate plastic, a plastic display housing, a plastic base housing, and our custom packaging solutions, which consist of a robust corrugated box and an air cushion sheet.


Together, all of these components provide OEMs with a seamless, fully integrated instrument housing solution that enhances the appearance and value of their products.

enclosure icon

Enclosure

Includes an aluminum EN500 plastic enclosure with a window cover.

pcb-housings icon

PCB Housings

Includes a display and base housing that hold PCBs or other components.

packaging icon

Packaging

Includes ExDirect packaging solutions that ensure safe storage and transit.

Key Features

EN500-EVAL_encsloure

Enclosure

The Hawk EN500-PL-W-07-GY plastic instrument enclosure comes with a window cover, one 3/4" top/bottom conduit, and two 3/4" side conduits.

EX500-EVAL_display_housing

Display Housing

The EA500-DisplayHousing1 accommodates a display PCB and one additional PCB, and easily mounts to the Hawk enclosure's built-in rails.

EX500-EVAL_base_housing

Base Housing

The EA500-BaseHousing3 accommodates additional components like relays on the base of the Hawk enclosure.

EX500-EVAL_railcaps

Rail Caps & Screws

The EA500-RailCaps and EA500-RailScrews make it easy to attach and remove our display housings without additional hardware.

EX500-EVAL_box

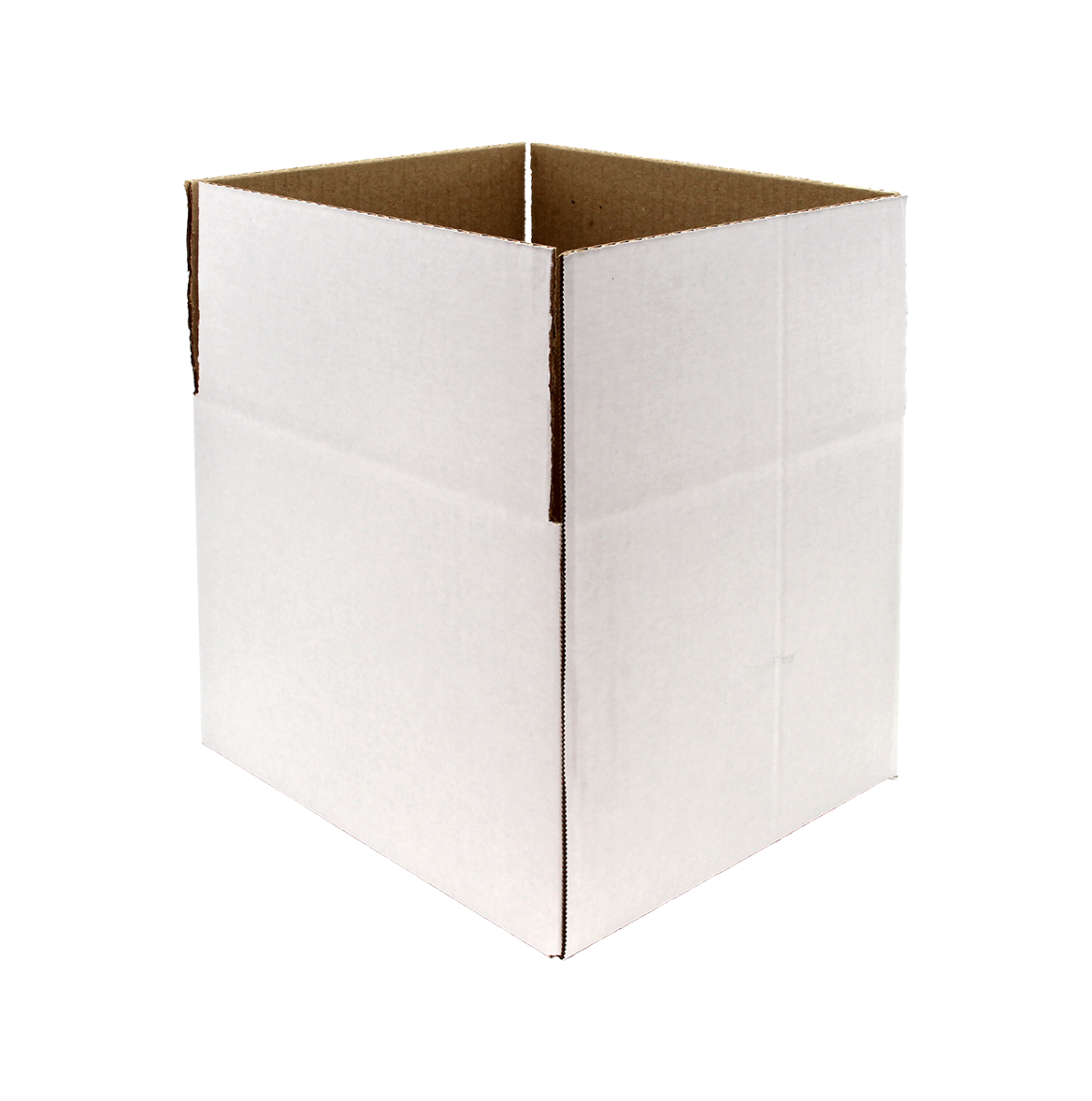

Box

The EP500-BOX is a heavy-duty, white corrugated box designed for the Hawk enclosure.

EX500-EVAL_acs

Air Cushion Sheet

The EP500-ACS offers a sustainable packing option designed for the Hawk enclosure and box.

EN500-EVAL_CAD

CAD Drawings

Simplify, accelerate, and reduce the cost of engineering efforts with the available CAD Drawings. An advantage other suppliers lack.

Specifications

Type
EN500 Plastic Hawk Evaluation Unit with Rail Caps, Plastic Housings, and Packaging
Material
Polycarbonate plastic with UV stabilizer
Conduits
Three 3/4" NPT Conduit Openings
Case Color
Gray

Ordering Information

Show Filters
SKU: EN500-EVAL Type: EN500 Plastic Hawk Evaluation Unit with Rail Caps, Plastic Housings, and Packaging
Material: Polycarbonate plastic with UV stabilizer
Conduits: Three 3/4" NPT Conduit Openings
Case Color: Gray
Stock: 5 Lead Time: Currently 5 in stock for immediate shipment. Price: $99.00 Substantial quantity discounts available; contact factory for details.

Need Additional Information?

For any questions or quantity pricing please contact us.
